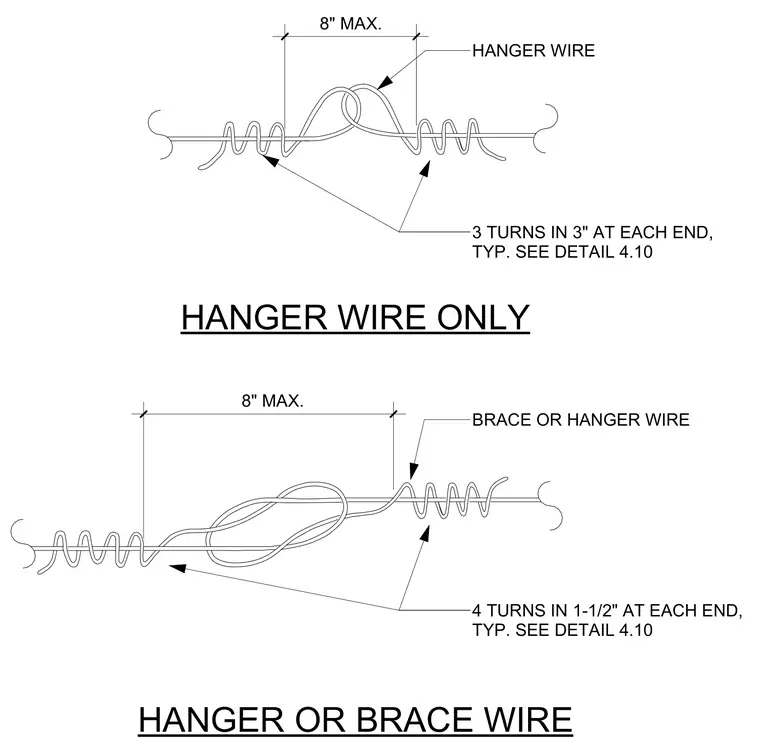

Suspended ceiling hanger and brace wire connections utilize twisted wire end wraps for secure attachment. The hanger wire only detail specifies three turns in three inches at each end. The hanger or brace wire detail specifies four turns in one and one-half inches at each end with an eight-inch maximum dimension.
3 TURNS IN 3" AT EACH END, TYP. SEE DETAIL 4.10 HANGER WIRE ONLY HANGER WIRE 4 TURNS IN 1-1/2" AT EACH END, TYP. SEE DETAIL 4.10 HANGER OR BRACE WIRE BRACE OR HANGER WIRE 8" MAX. 8" MAX.
