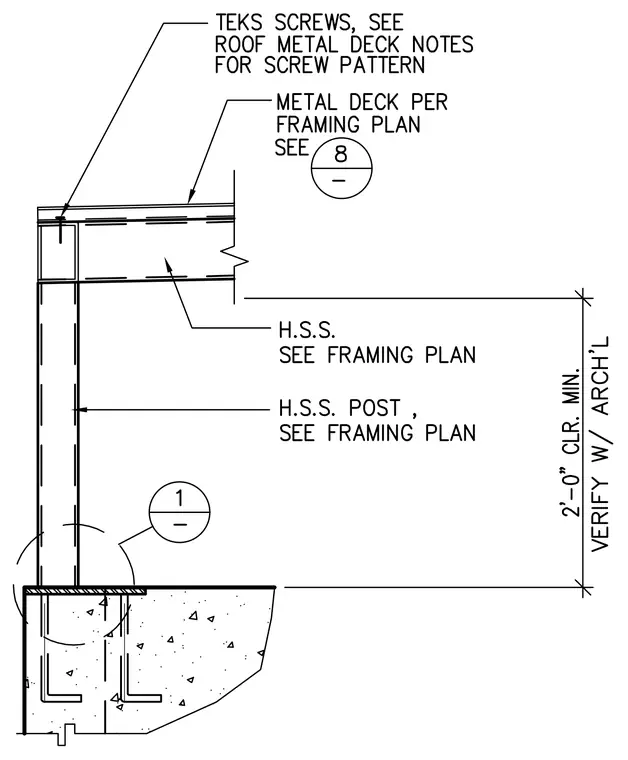

A hollow structural section post sits on a base plate anchored to a concrete foundation with embedded angles, providing a minimum two-foot clearance verified with architectural drawings. The post supports an upper hollow structural section framing member carrying a metal roof deck fastened with Teks screws according to the roof metal deck notes. The framing components are sized per the structural framing plan.
