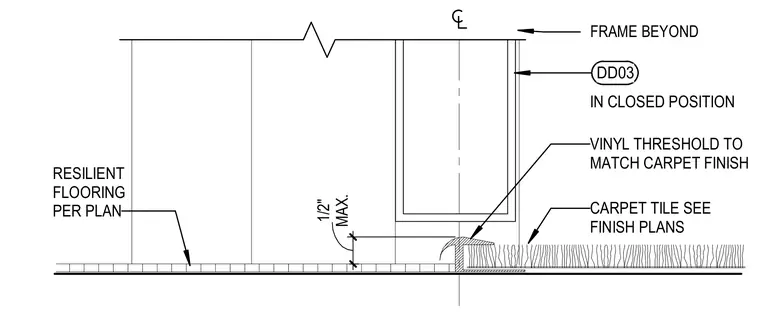

A vinyl threshold transitions between resilient flooring and carpet tile located on opposite sides of a frame shown in its closed position. The vinyl threshold matches the carpet finish and maintains a maximum height clearance of one-half inch. Resilient flooring and carpet tile finishes are installed per plan.
CARPET TILE SEE FINISH PLANS IN CLOSED POSITION RESILIENT FLOORING PER PLAN VINYL THRESHOLD TO MATCH CARPET FINISH FRAME BEYOND MAX. 1/2" DD03
