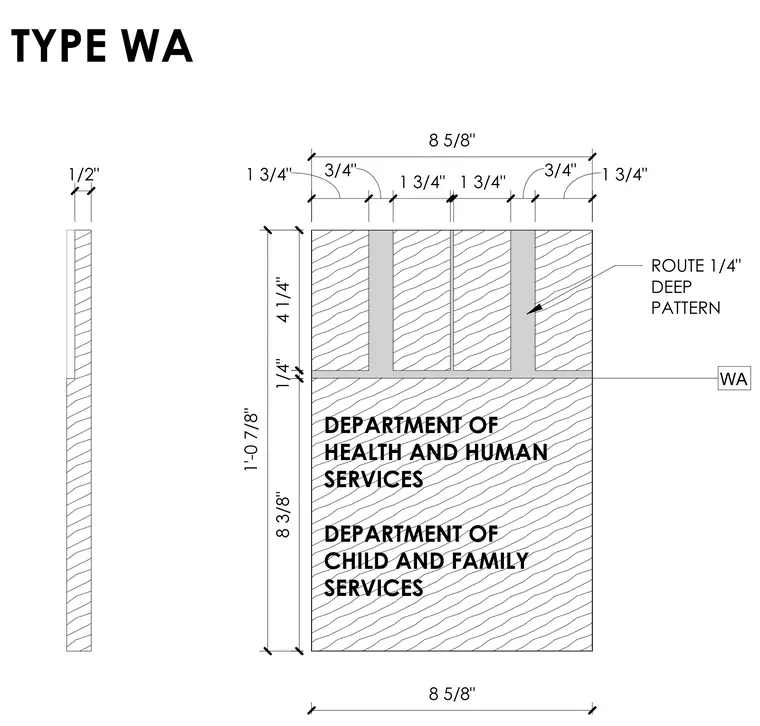

Custom routed wooden wall panel detail Type WA featuring engraved lettering for the Department of Health and Human Services and Department of Child and Family Services. The panel has an overall thickness of one-half inch with specific groove spacing and a quarter-inch deep routed pattern.
WA 1'-0 7/8" 8 5/8" 1/2" 4 1/4" 1/4" 8 3/8" 8 5/8" DEPARTMENT OF HEALTH AND HUMAN SERVICES DEPARTMENT OF CHILD AND FAMILY SERVICES 1 3/4" 3/4" 1 3/4" 1 3/4" 3/4" 1 3/4" ROUTE 1/4" DEEP PATTERN TYPE WA
