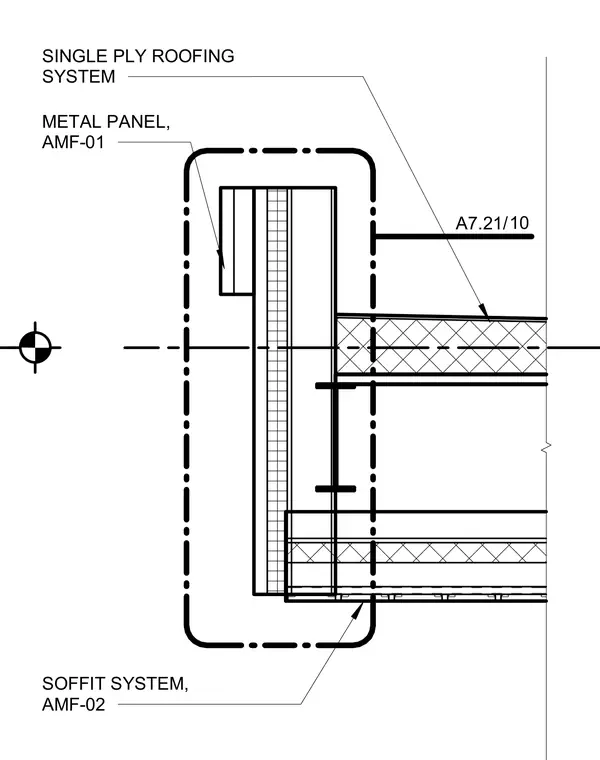

The intersection of a single-ply roofing system with a soffit system and exterior metal panels designated as AMF-01 and AMF-02. The assembly coordinates the roof edge condition with the building overhang and exterior cladding integration.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
