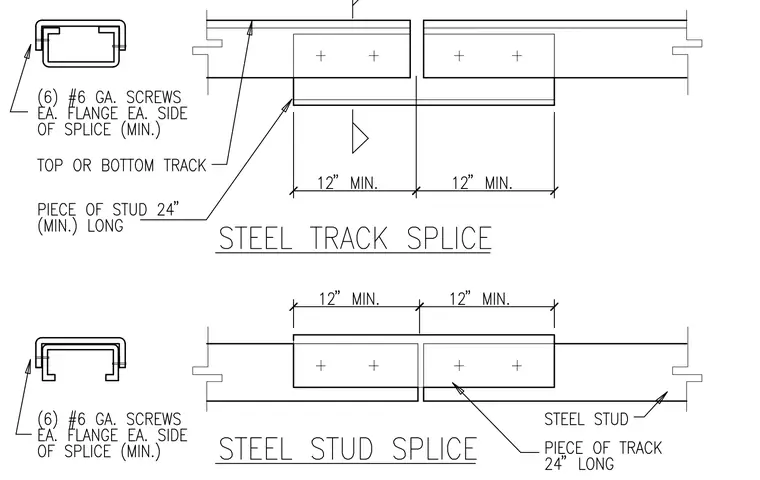

The steel track splice utilizes a twenty-four-inch minimum length piece of steel stud nested within the track, secured with six number six gauge screws per flange on each side of the splice. The steel stud splice employs a twenty-four-inch long piece of track nested over the stud, also fastened with six number six gauge screws per flange on each side of the splice. Both configurations require a minimum twelve-inch overlap on each side of the joint to ensure structural continuity.
