An acoustical ceiling tile system terminates at an aluminum storefront spandrel assembly with a black finish sound barrier trim cap by Mull-It-Over providing an STC 60 rating. Gasket infill material is positioned on the top and bottom of the trim cap where it meets the opaque spandrel panel. Spandrel-mullion compression plates and compression seals secure the connection against the mullion profile. The ceiling grid is suspended independently and ties into the framing per the architectural schedule.

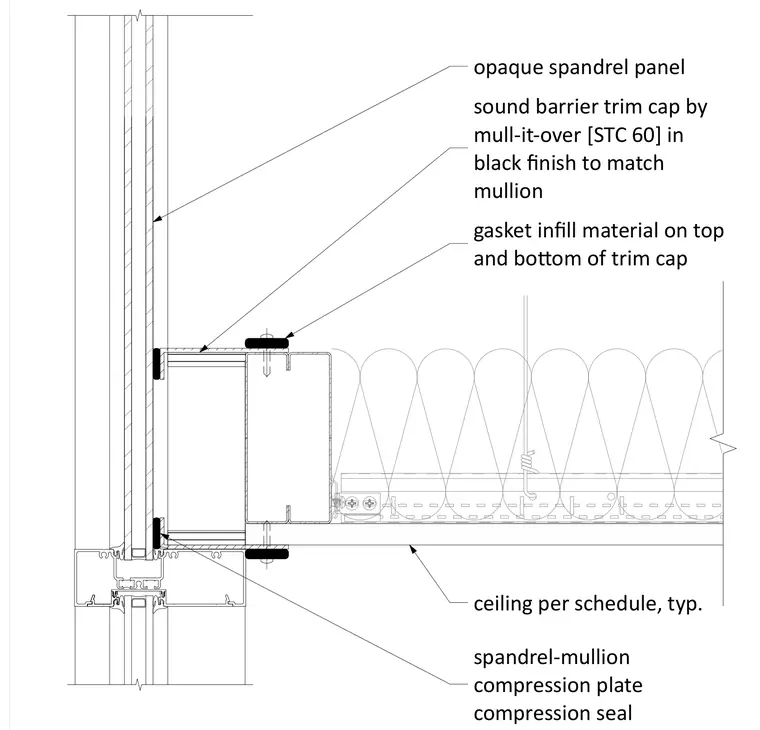

gasket infill material on top and bo Ʃom of trim cap sound barrier trim cap by mull-it-over [STC 60] in black finish to match mullion ceiling per schedule, typ. opaque spandrel panel spandrel-mullion compression plate compression seal
