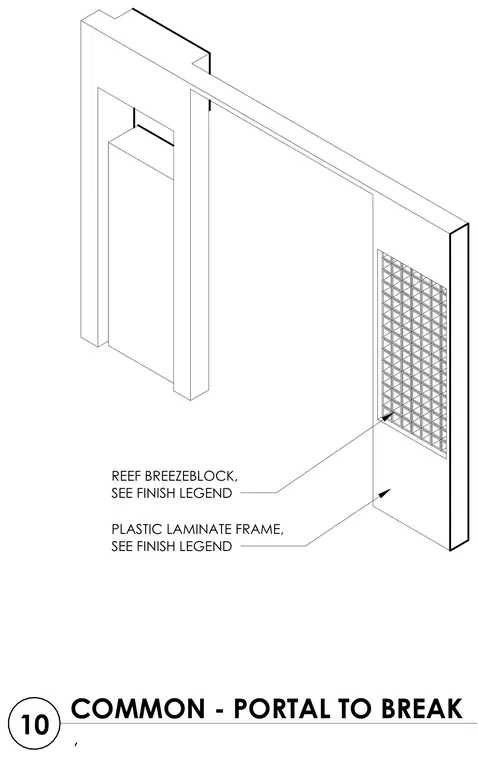

An interior portal frame assembly connects the common area to the break space using a plastic laminate finish frame. A reef breezeblock screen is integrated into the vertical panel assembly, with specific materials and finishes keyed to the finish legend. The frame configuration creates a partition opening between adjacent rooms.
REEF BREEZEBLOCK, SEE FINISH LEGEND PLASTIC LAMINATE FRAME, SEE FINISH LEGEND , 10 COMMON - PORTAL TO BREAK
