Architectural · A-DYESZ

Curved Ceiling Edge Condition at Wood Ceiling and Metal Stud Bulkhead

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Ceilings Floors / Slabs Connections / Plates

About this detail

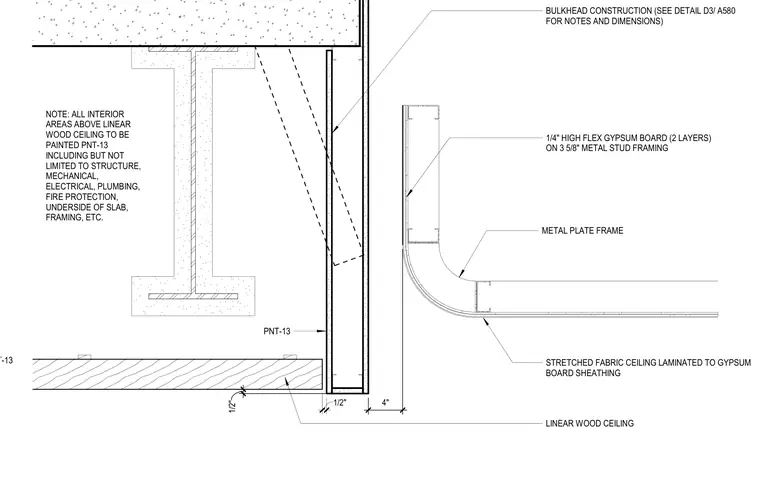

A curved ceiling edge condition transitions a linear wood ceiling terminating adjacent to a bulkhead. The bulkhead features two layers of one-quarter-inch high flex gypsum board over three-and-five-eighths-inch metal stud framing, supported by a metal plate frame. Stretched fabric ceiling finishes are laminated to the gypsum board sheathing. A note specifies that all interior areas above the linear wood ceiling are to be painted PNT-13, including the structure, mechanical, electrical, plumbing, fire protection, and underside of the slab.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
