A forged brass valve body features a 3/8-inch IPS female inlet and a removable ten-serration hose end for laboratory gas connections. The assembly includes a forged brass lever handle operated with a colored plastic index disk. A 3/8-inch IPS mounting shank with a locknut and washer secures the valve through the mounting surface. Dimensions indicate a 1 5/8-inch width from the shank center to the outlet, a 2 1/8-inch height to the handle axis, and an overall height of 3 3/8 inches. Lever handles are specified at all lab gas fittings unless otherwise noted.

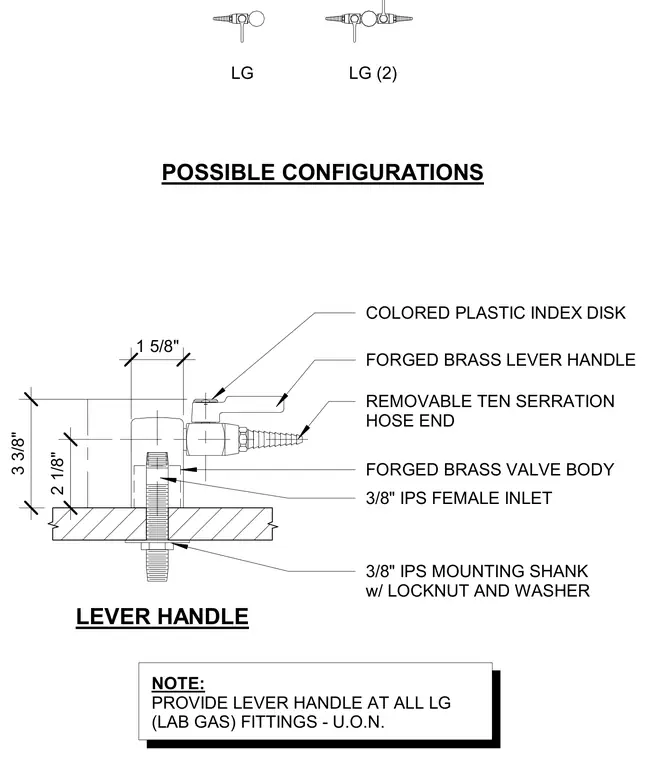

LG LEVER HANDLE 1 5/8" 2 1/8" 3 3/8" COLORED PLASTIC INDEX DISK FORGED BRASS LEVER HANDLE REMOVABLE TEN SERRATION HOSE END 3/8" IPS FEMALE INLET FORGED BRASS VALVE BODY 3/8" IPS MOUNTING SHANK w/ LOCKNUT AND WASHER POSSIBLE CONFIGURATIONS NOTE: PROVIDE LEVER HANDLE AT ALL LG (LAB GAS) FITTINGS - U.O.N. LG (2)
