Structural · A-DYBX6

Eyebolt and Threaded Rod to Unistrut Connection

Materials

Elements

About this detail

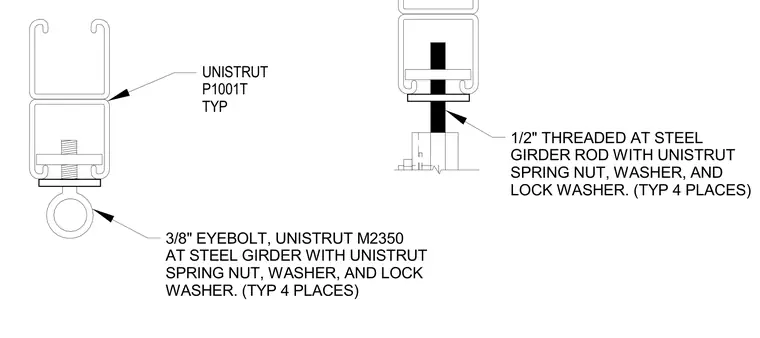

A three-eighths-inch eyebolt is fastened to a Unistrut M2350 channel at a steel girder using a Unistrut spring nut, a flat washer, and a lock washer, repeated typically in four places. A one-half-inch threaded rod is similarly secured to a Unistrut P1001T channel at a steel girder with a Unistrut spring nut, a flat washer, and a lock washer in four typical locations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
