Architectural · A-DY9MG

Women's Restroom Door-Mounted Signage Detail

Elements

About this detail

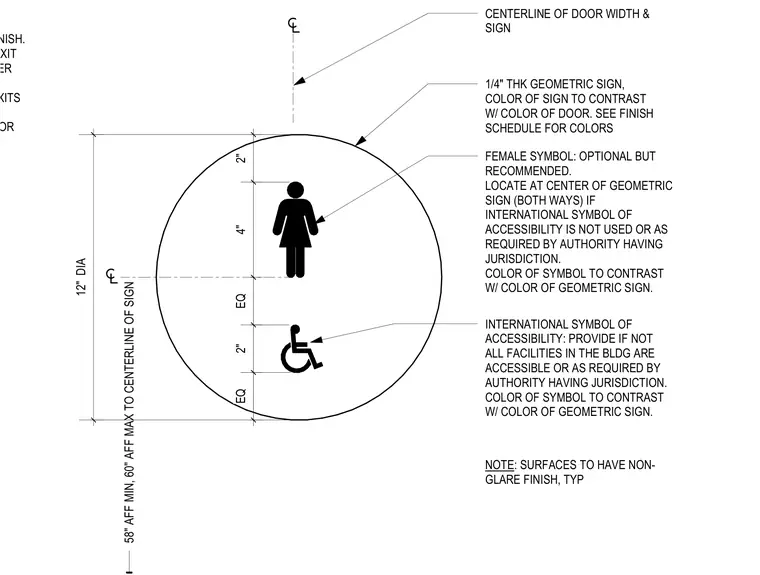

The assembly consists of a twelve-inch diameter, one-quarter-inch thick geometric door-mounted sign positioned on the door surface at a centerline height ranging from fifty-eight inches minimum to sixty inches maximum above the finished floor. The sign features a contrasting color relative to the door and includes a non-glare finish across all surfaces. A female symbol is centered vertically on the sign face, accompanied below by the optional International Symbol of Accessibility depending on facility requirements and jurisdiction. All graphical elements and symbols must maintain a contrasting color against the underlying geometric sign background.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
