FRP or Marlite panels are installed on the walls adjacent to the service sink to protect surfaces from water splash. All exposed panel edges are finished with an FRP edge track and sealed with sealant. A wall-mounted faucet with chrome escutcheons connects to the water supply per plumbing drawings, located above the service sink.

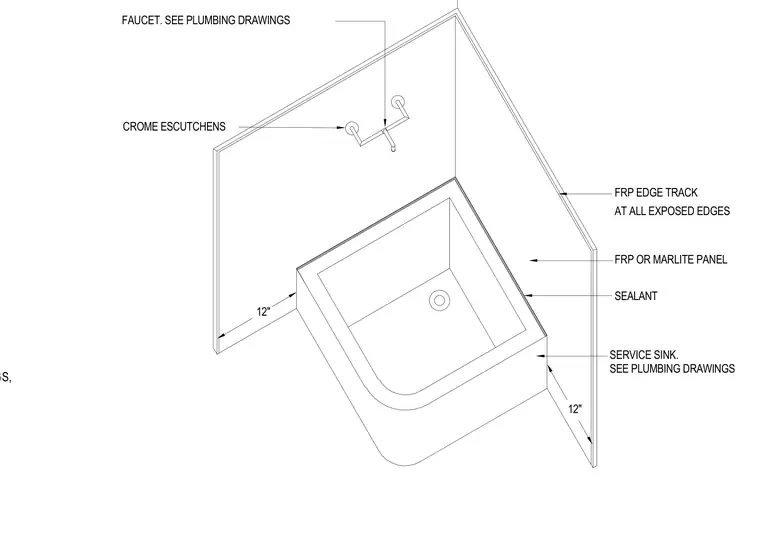

SEE PLUMBING DRAWINGS SERVICE SINK. AT ALL EXPOSED EDGES FRP EDGE TRACK CROME ESCUTCHENS FRP OR MARLITE PANEL SEALANT FAUCET. SEE PLUMBING DRAWINGS 12" 12" STEEL TUBE LEGS,
