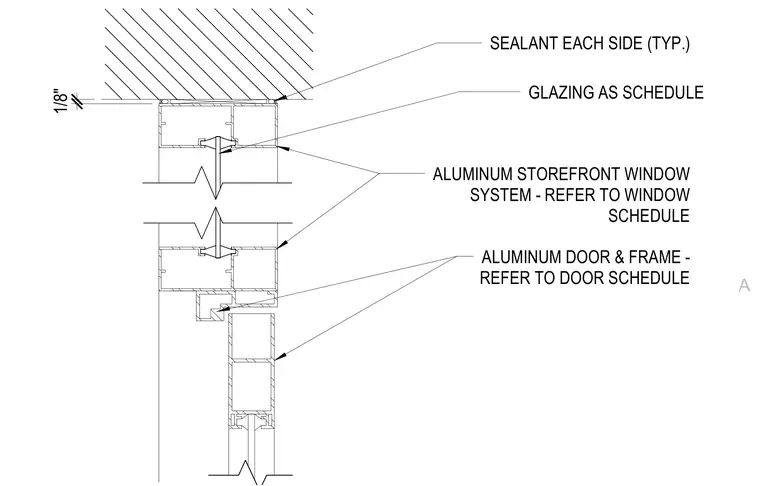

An aluminum storefront window system interfaces with an aluminum door and frame assembly at the head condition. Sealant is applied to each side of the perimeter joint with a one-eighth-inch clearance gap. Glazing and framing components are sized per the respective window and door schedules.
SEALANT EACH SIDE (TYP.) ALUMINUM STOREFRONT WINDOW SYSTEM - REFER TO WINDOW SCHEDULE ALUMINUM DOOR & FRAME - REFER TO DOOR SCHEDULE GLAZING AS SCHEDULE 1/8" A
