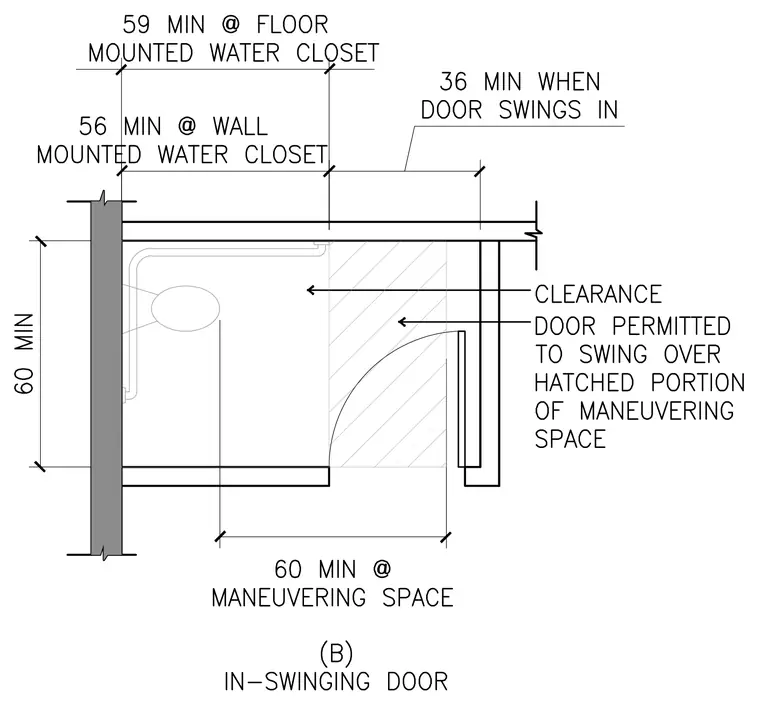

An accessible water closet stall layout provides a minimum width of sixty inches alongside the fixture with a maneuvering space depth of sixty inches minimum. The door swing is permitted to overlap the hatched portion of the maneuvering space when the door swings inward, requiring thirty-six inches minimum clearance when the door swings in. The stall requires fifty-six inches minimum depth at wall-mounted water closets and fifty-nine inches minimum depth at floor-mounted water closets.
