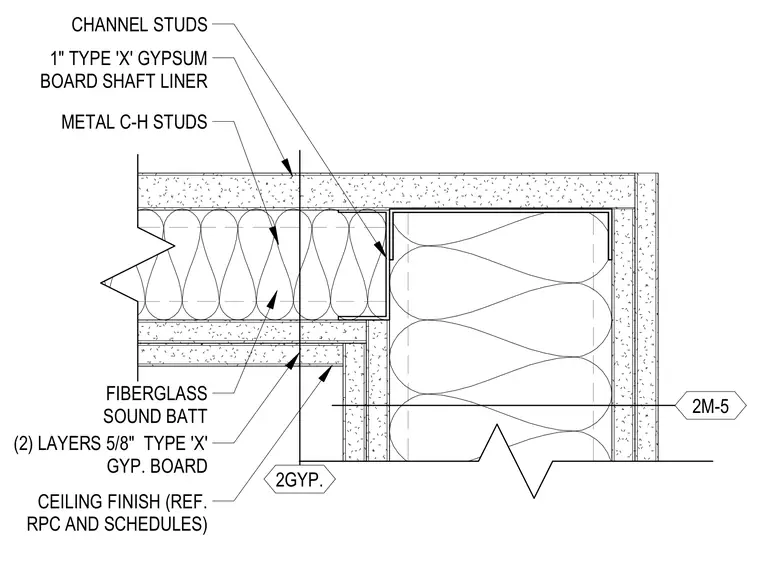

Metal channel studs frame the bulkhead assembly alongside one-inch Type X gypsum board shaft liner and metal C-H studs. Fiberglass sound batts fill the stud cavities for acoustic performance. The finished surfaces consist of two layers of five-eighths-inch Type X gypsum board on the ceiling and wall finish per reflected ceiling plans and schedules.
FIBERGLASS SOUND BATT 1" TYPE 'X' GYPSUM BOARD SHAFT LINER METAL C-H STUDS (2) LAYERS 5/8" TYPE 'X' GYP. BOARD CEILING FINISH (REF. RPC AND SCHEDULES) CHANNEL STUDS 2M-5 2GYP.
