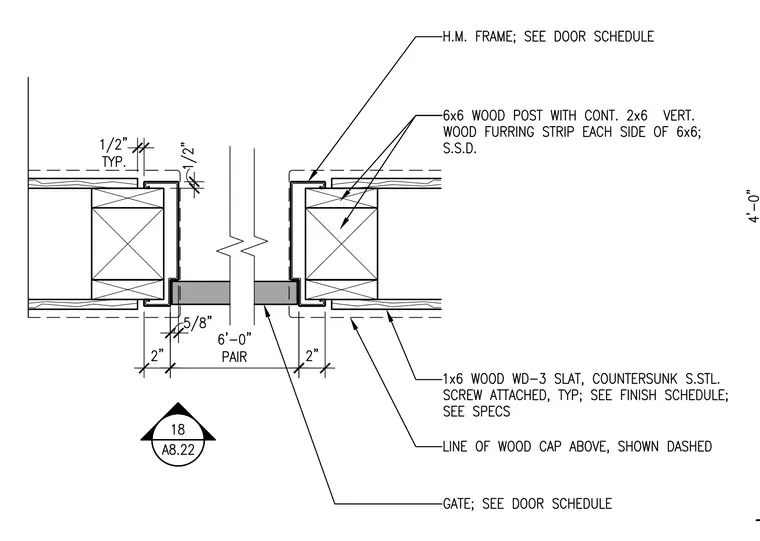

The gate assembly consists of a six-by-six wood post with continuous two-by-six vertical wood furring strips on each side, flanked by hollow metal frames sized per the door schedule. The surrounding wall partitions feature one-by-six wood slats attached with countersunk stainless steel screws. A dashed line indicates the wood cap above. The clear opening dimensions are six feet for the pair of gates.
