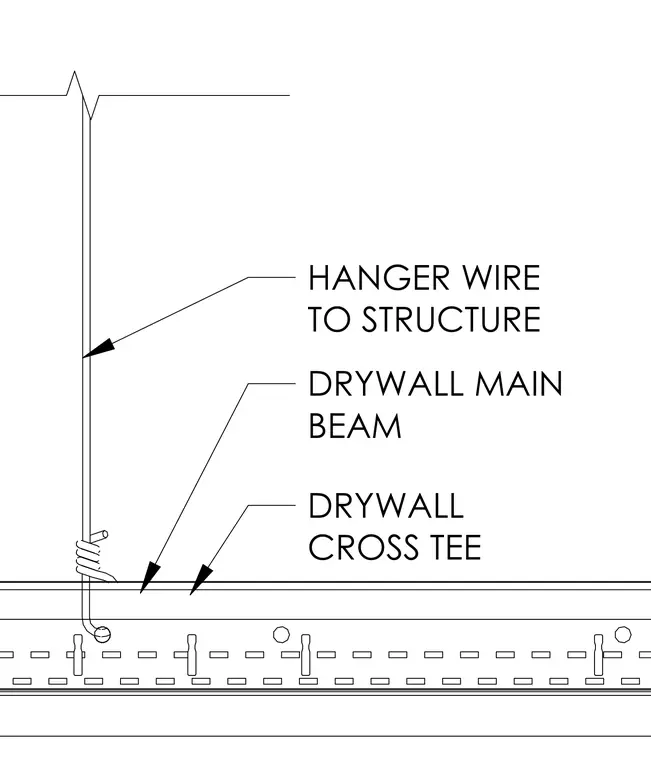

A suspended gypsum ceiling framing assembly featuring drywall main beams and drywall cross tees hung from the overhead structure by hanger wires. The hanger wire ties directly into the framing grid to support the ceiling plane. This assembly accommodates concealed grid systems typically found at perimeter reveals and knife edge conditions.
