An aluminum window head assembly integrates with a fluid applied air and water barrier applied per manufacturer recommendations. A shaped sheet metal drip cap sits above the window frame with a one inch clearance. Continuous insulation rated at minimum R-10 is installed alongside a thermal break clip.

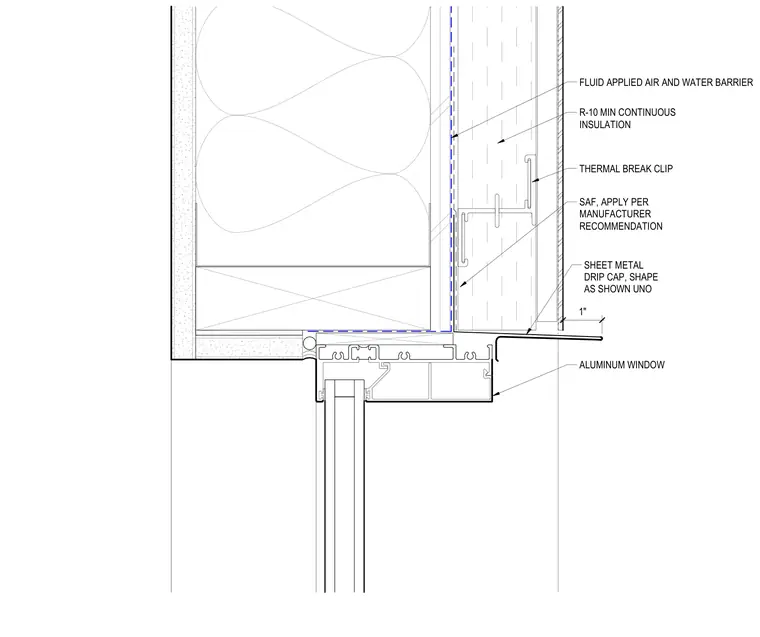

FLUID APPLIED AIR AND WATER BARRIER SAF, APPLY PER MANUFACTURER RECOMMENDATION SHEET METAL DRIP CAP, SHAPE AS SHOWN UNO R-10 MIN CONTINUOUS INSULATION THERMAL BREAK CLIP ALUMINUM WINDOW 1" FLUID APPLIED AIR AND WATER BARRIER
