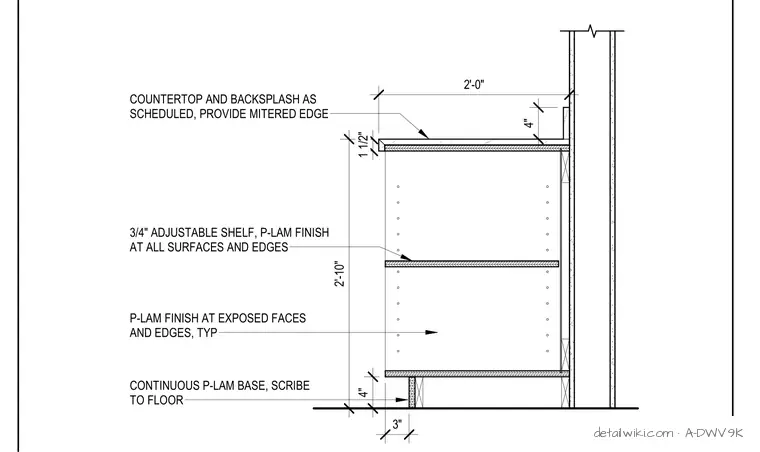

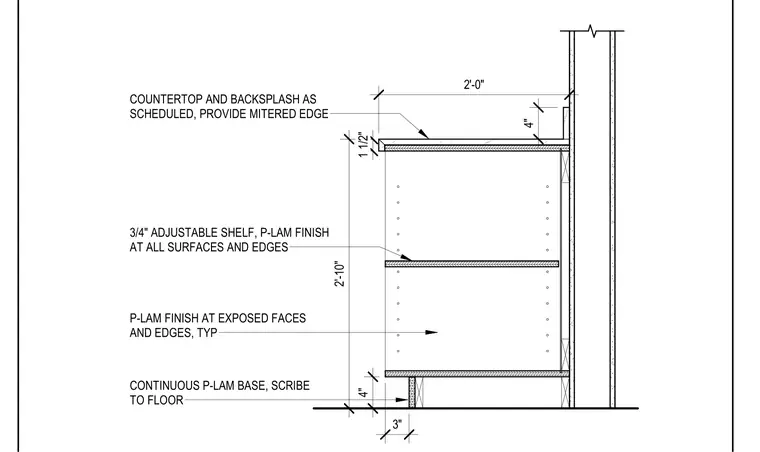

This millwork assembly features a base cabinet with a 3/4-inch adjustable shelf finished with plastic laminate on all surfaces and edges. The cabinet sits on a 4-inch continuous plastic laminate base that is scribed to the floor. The countertop and backsplash are finished as scheduled with a mitered edge detail. All exposed faces and edges of the cabinet are finished with plastic laminate. The total height of the unit is 2 feet 10 inches with a 2-foot deep countertop.
