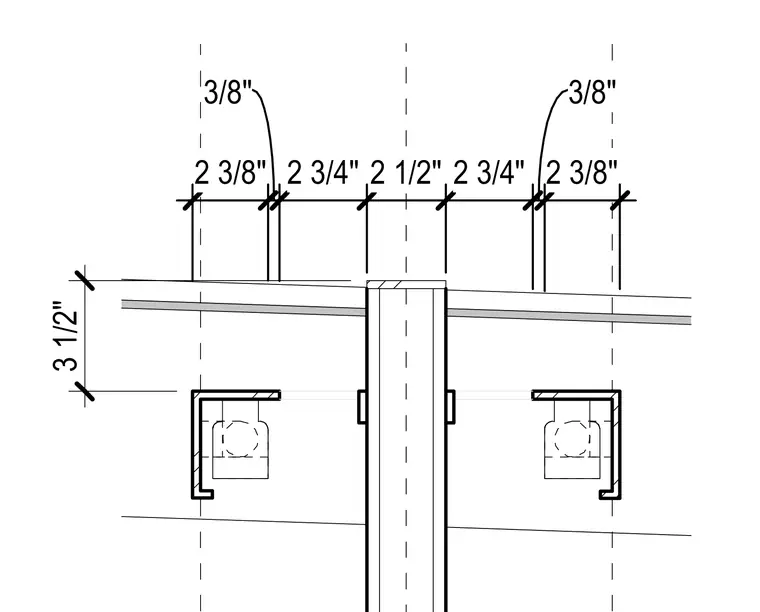

A suspended ceiling expansion joint assembly features a central vertical runner aligned with centerlines and dimensioned 2 1/2 inches wide. Symmetrical channels flank the central member with precise spacing dimensions of 2 3/8 inches, 3/8 inches, and 2 3/4 inches across the assembly. A drop dimension of 3 1/2 inches establishes the vertical clearance for the framing components below the ceiling plane.
