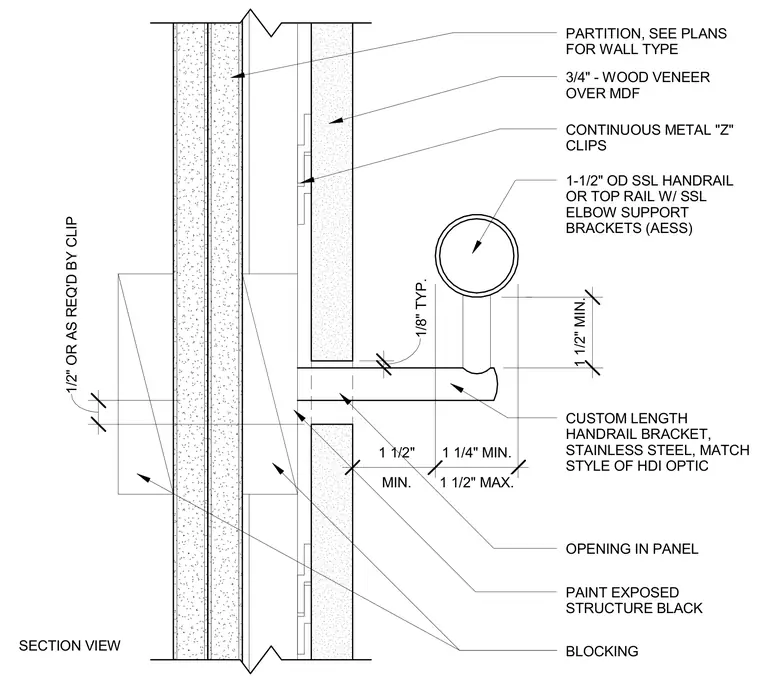

A 1-1/2 inch outer diameter stainless steel handrail is supported by a custom-length stainless steel elbow bracket matching the HDI Optic style. The bracket extends through an opening in the panel assembly, anchored to concealed wood blocking behind the partition. The wall finish consists of 3/4-inch wood veneer over medium-density fiberboard mounted on continuous metal Z-clips, with the exposed structural elements painted black.
MIN. 1 1/2" 1 1/2" MAX. 1 1/4" MIN. 1/8" TYP. 1/2" OR AS REQ'D BY CLIP 1 1/2" MIN. SECTION VIEW PARTITION, SEE PLANS FOR WALL TYPE CONTINUOUS METAL "Z" CLIPS 3/4" - WOOD VENEER OVER MDF 1-1/2" OD SSL HANDRAIL OR TOP RAIL W/ SSL ELBOW SUPPORT BRACKETS (AESS) CUSTOM LENGTH HANDRAIL BRACKET, STAINLESS STEEL, MATCH STYLE OF HDI OPTIC PAINT EXPOSED STRUCTURE BLACK BLOCKING OPENING IN PANEL
