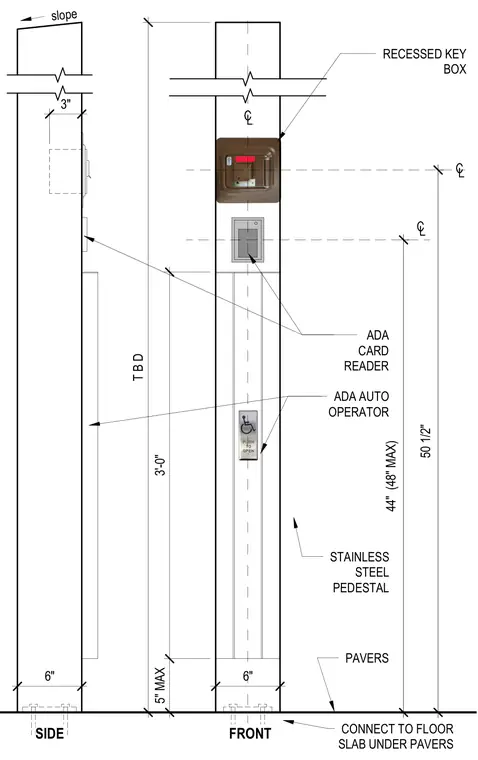

A stainless steel pedestal is anchored to the structural floor slab beneath the finished pavers. The assembly incorporates a recessed key box, an ADA card reader positioned at fifty and a half inches, and an ADA auto operator button set at thirty-six inches above the finished floor. The pedestal maintains a six-inch width with a three-inch depth profile at the side view and connects securely through the paver layer.
6" T B D 44" (48" MAX) 50 1/2" 6" 3" RECESSED KEY BOX ADA CARD READER PAVERS FRONT SIDE slope STAINLESS STEEL PEDESTAL CONNECT TO FLOOR SLAB UNDER PAVERS 5" MAX 3'-0" ADA AUTO OPERATOR
