Telecommunications · A-DW5G7

AV Device Raceway Details

Materials

Elements

Walls Ceilings Floors / Slabs Connections / Plates Reinforcing

About this detail

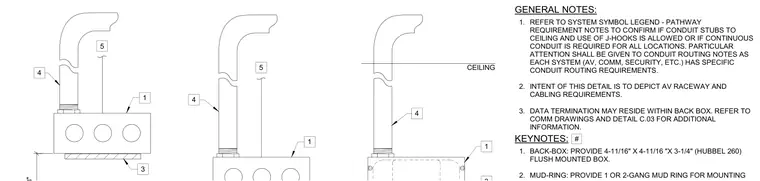

An audio-visual device raceway installation utilizes a flush-mounted back-box measuring 4-11/16 inches by 4-11/16 inches by 3-1/4 inches, specified as Hubbell 260. A one or two-gang mud ring attaches to the back-box for mounting purposes. Conduit connects to the back-box and extends upward toward the ceiling line. Pathway requirements dictate whether continuous conduit is required or if stubbing to the ceiling with J-hooks is permitted based on system symbol legends and routing notes for audiovisual, communication, and security systems. Data termination may reside within the back-box per project specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
