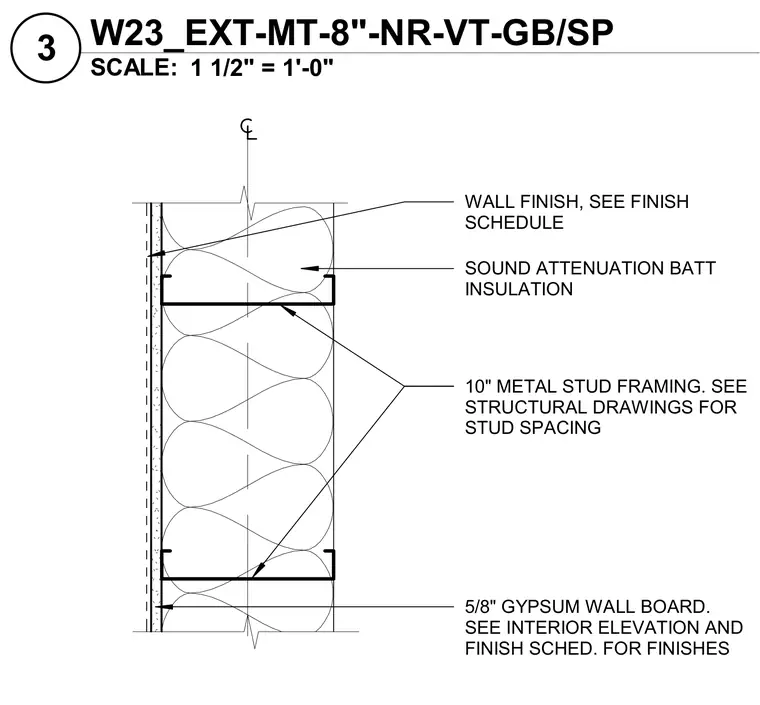

Ten-inch metal stud framing provides the structural support for the partition wall with stud spacing sized per structural drawings. Sound attenuation batt insulation fills the cavity between the studs for acoustic control. Five-eighths-inch gypsum wall board is attached to the framing to form the interior surface. Wall finishes are applied per the finish schedule.
10" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE SCALE: 1 1/2" = 1'-0" 3 W23_EXT-MT-8"-NR-VT-GB/SP
