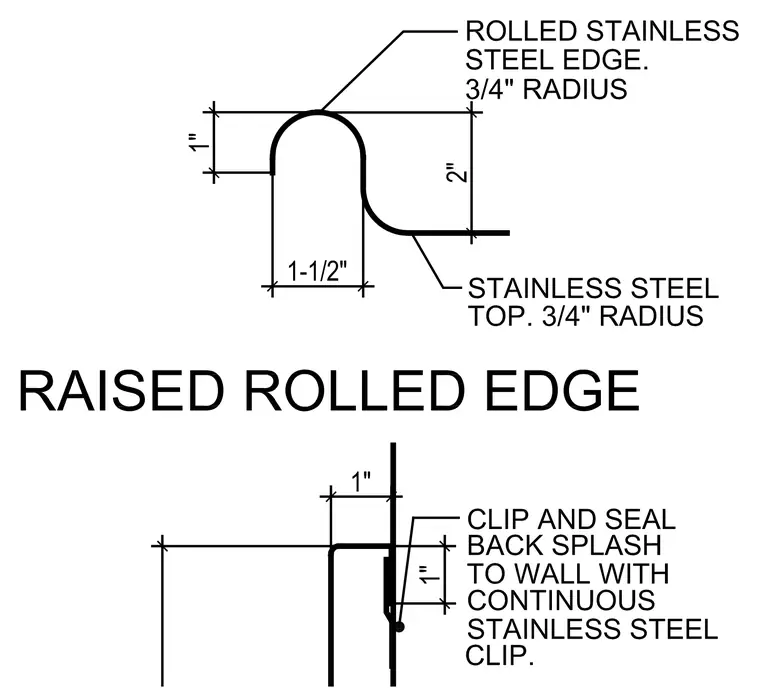

A rolled stainless steel edge profile features a one-inch vertical rise over a one-and-one-half-inch dimension with a three-quarter-inch radius, transitioning to a stainless steel top surface with a three-quarter-inch radius and a two-inch drop. The backsplash is secured to the wall using a continuous stainless steel clip with a one-inch lap and seal.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
