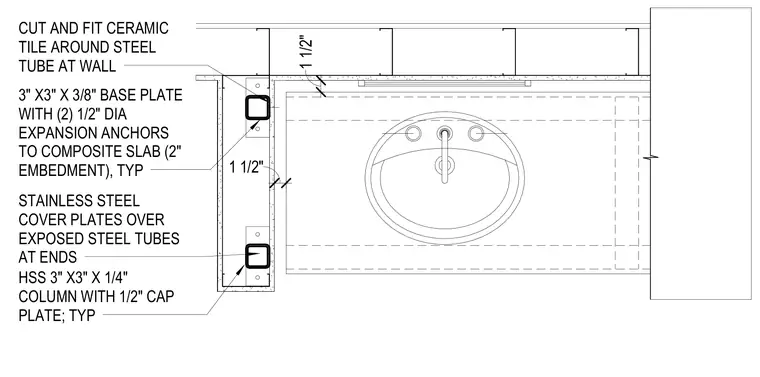

This plan detail shows hollow structural section columns supporting a lavatory counter assembly. The three-inch by three-inch by one-quarter-inch hollow structural section columns feature one-half-inch cap plates typically at their ends. Three-inch by three-inch by three-eighths-inch base plates secure each column to the composite slab using two one-half-inch diameter expansion anchors with a two-inch embedment depth. Stainless steel cover plates conceal the exposed steel tubes at the ends. Ceramic tile is cut and fitted around the steel tubes adjacent to the wall.
CUT AND FIT CERAMIC TILE AROUND STEEL TUBE AT WALL 3" X3" X 3/8" BASE PLATE WITH (2) 1/2" DIA EXPANSION ANCHORS TO COMPOSITE SLAB (2" EMBEDMENT), TYP STAINLESS STEEL COVER PLATES OVER EXPOSED STEEL TUBES AT ENDS HSS 3" X3" X 1/4" COLUMN WITH 1/2" CAP PLATE; TYP 1 1/2" 1 1/2"
