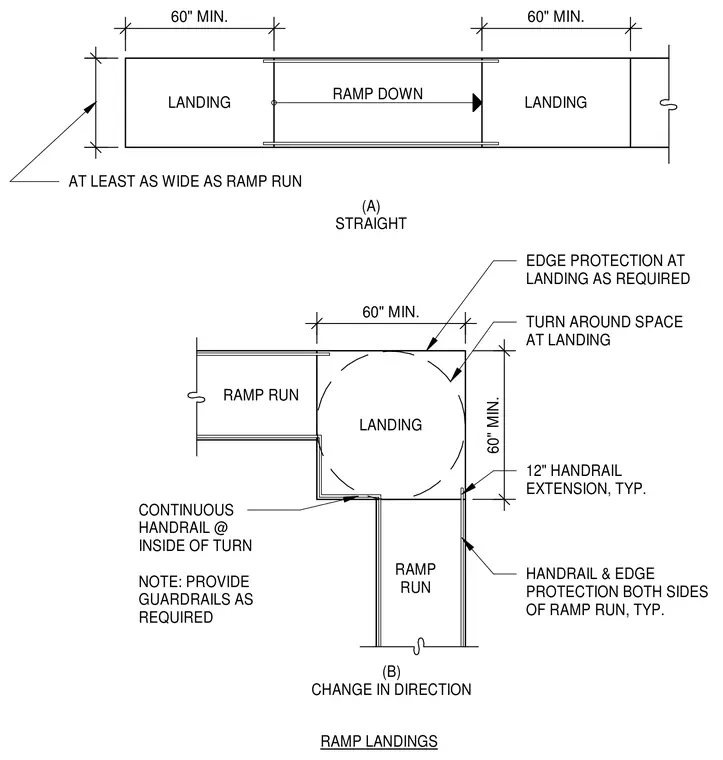

Ramp landings require a minimum sixty-inch length at turns and intermediate points, with a width at least equal to the adjacent ramp run. Handrail and edge protection are required on both sides of the ramp run typically, featuring a twelve-inch handrail extension and a continuous handrail on the inside of direction changes. Landings incorporate turning spaces, and guardrails must be provided as required.
60" MIN. 60" MIN. 60" MIN. 60" MIN. RAMP DOWN LANDING LANDING LANDING RAMP RUN AT LEAST AS WIDE AS RAMP RUN (A) STRAIGHT (B) CHANGE IN DIRECTION RAMP LANDINGS RAMP RUN EDGE PROTECTION AT LANDING AS REQUIRED TURN AROUND SPACE AT LANDING 12" HANDRAIL EXTENSION, TYP. HANDRAIL & EDGE PROTECTION BOTH SIDES OF RAMP RUN, TYP. CONTINUOUS HANDRAIL @ INSIDE OF TURN NOTE: PROVIDE GUARDRAILS AS REQUIRED
