A video projector hangs from a ceiling equipment enclosure via a 1.5-inch inner diameter Schedule 40 steel pipe connected through an adjustable projector mount. The enclosure sits above the ceiling line and connects to the building structure overhead using eye bolts matched to the specific substrate material. Number 12 AWG solid wire safety lines provide secondary seismic or fallback support with four tight turns at the top and bottom attachments.

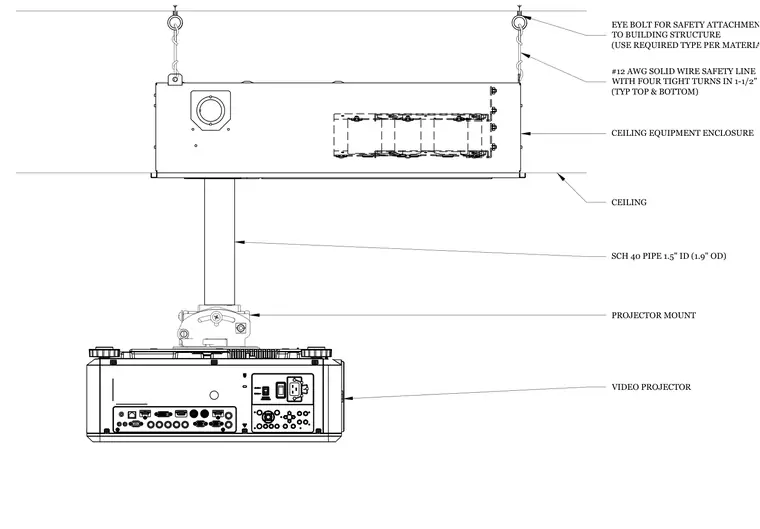

EYE BOLT FOR SAFETY ATTACHMENT TO BUILDING STRUCTURE (USE REQUIRED TYPE PER MATERIAL) #12 AWG SOLID WIRE SAFETY LINE WITH FOUR TIGHT TURNS IN 1-1/2" (TYP TOP & BOTTOM) CEILING EQUIPMENT ENCLOSURE CEILING SCH 40 PIPE 1.5" ID (1.9" OD) PROJECTOR MOUNT VIDEO PROJECTOR
