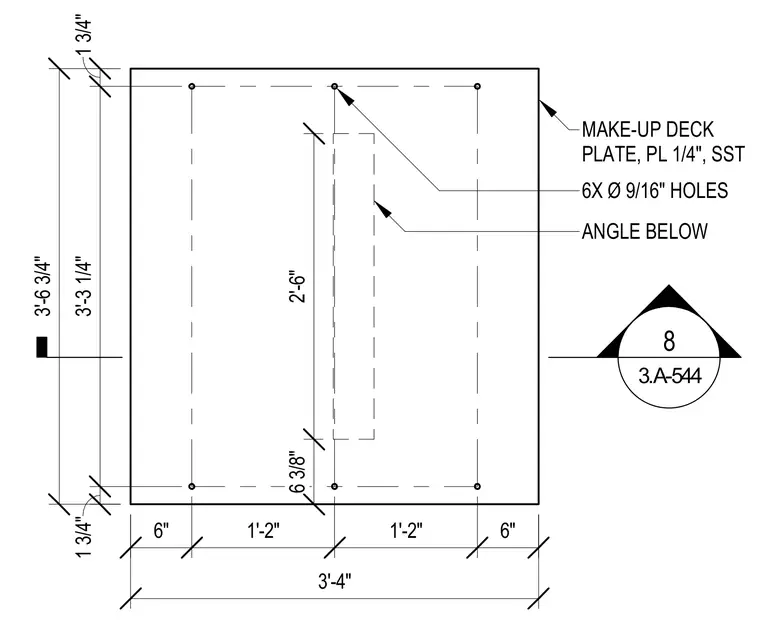

A quarter-inch thick stainless steel make-up deck plate spans the framing opening, supported by a structural steel angle located below. The plate measures three feet six and three-quarters inches by three feet four inches overall and is pre-drilled with six nine-sixteenth-inch diameter holes for attachment. The fastener pattern features six-inch edge distances combined with one-foot two-inch intermediate spacings, while the support angle underneath spans two feet six inches in length with a six and three-eighths-inch offset.
MAKE-UP DECK PLATE, PL 1/4", SST 3'-6 3/4" 3'-4" 1 3/4" 3'-3 1/4" 1 3/4" 6" 1'-2" 1'-2" 6" 6X Ø 9/16" HOLES 6 3/8" 2'-6" ANGLE BELOW 8 3.A-544
