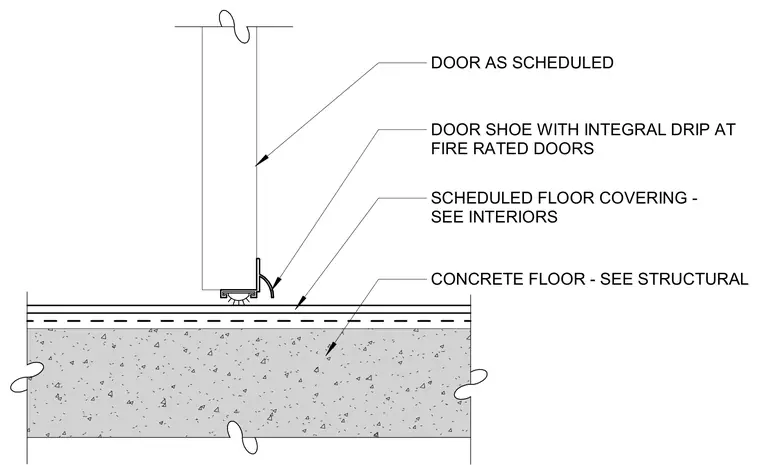

An interior door assembly interfaces with a concrete floor slab topped with a scheduled floor covering. A door shoe with an integral drip is mounted to the bottom of the scheduled door.
DOOR SHOE WITH INTEGRAL DRIP AT FIRE RATED DOORS DOOR AS SCHEDULED SCHEDULED FLOOR COVERING - SEE INTERIORS CONCRETE FLOOR - SEE STRUCTURAL
