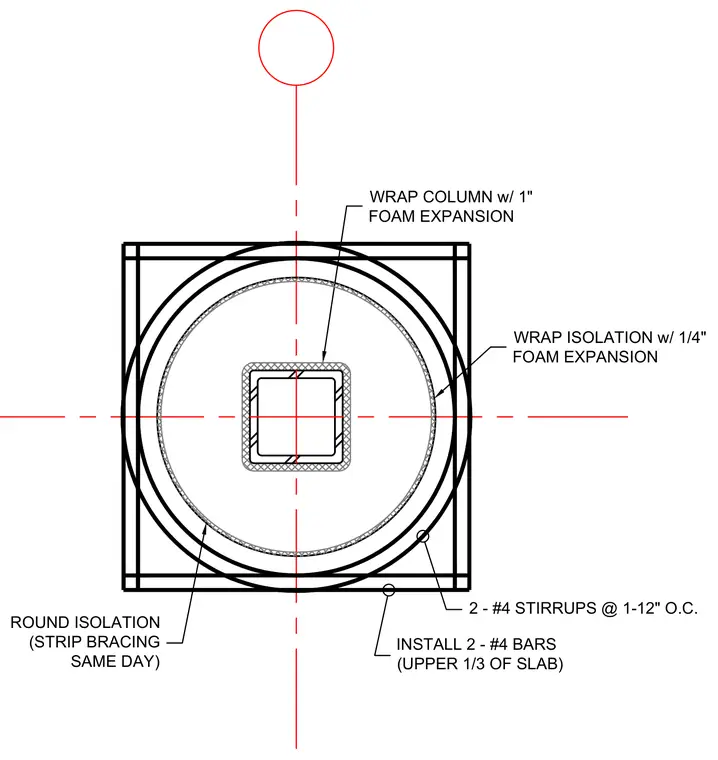

The central column is wrapped with one-inch foam expansion material. A round isolation layer is installed around the column, wrapped with one-quarter-inch foam expansion, with strip bracing to be stripped on the same day. Two number four bars are placed in the upper one-third of the surrounding slab. Two number four stirrups are spaced at twelve inches on center.
WRAP COLUMN w/ 1" FOAM EXPANSION INSTALL 2 - #4 BARS (UPPER 1/3 OF SLAB) 2 - #4 STIRRUPS @ 1-12" O.C. ROUND ISOLATION (STRIP BRACING SAME DAY) WRAP ISOLATION w/ 1/4" FOAM EXPANSION
