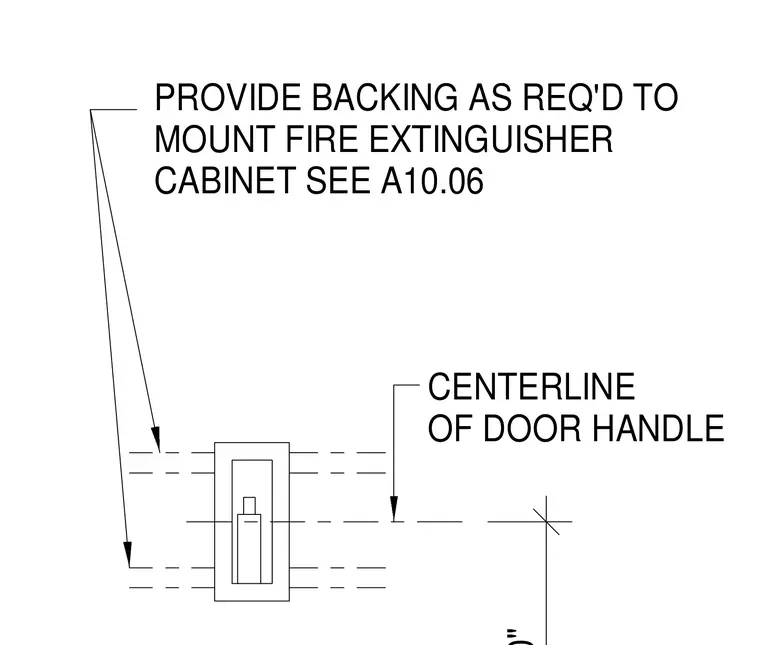

Wall framing requires concealed structural backing to support a recessed or surface-mounted fire extinguisher cabinet. The cabinet's vertical mounting zone aligns relative to the centerline of an adjacent door handle.
PROVIDE BACKING AS REQ'D TO MOUNT FIRE EXTINGUISHER CABINET SEE A10.06 CENTERLINE OF DOOR HANDLE
