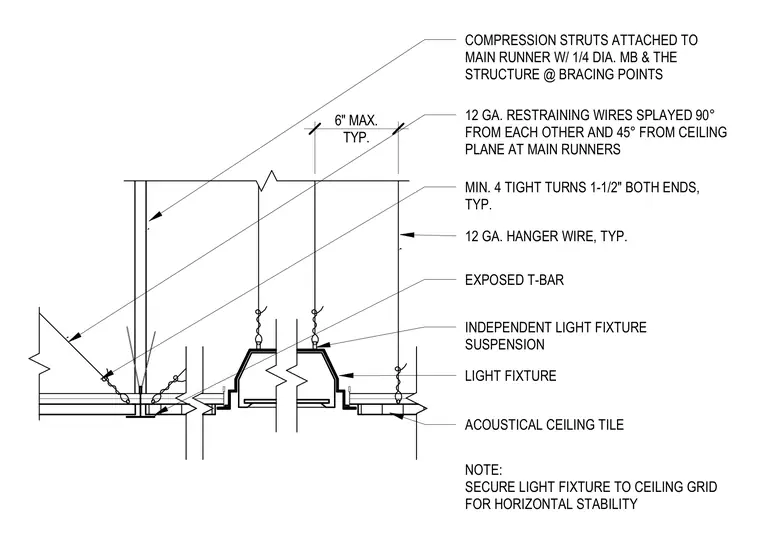

An independent light fixture suspension is provided using twelve-gauge hanger wire secured with minimum four tight turns over one and one-half inches at both ends. Compression struts and twelve-gauge restraining wires splayed ninety degrees from each other and forty-five degrees from the ceiling plane are attached to the main runners at bracing points using one-quarter-inch diameter machine bolts. The light fixture is secured to the ceiling grid for horizontal stability within the exposed T-bar acoustical ceiling tile system.
NOTE: SECURE LIGHT FIXTURE TO CEILING GRID FOR HORIZONTAL STABILITY EXPOSED T-BAR INDEPENDENT LIGHT FIXTURE SUSPENSION 12 GA. HANGER WIRE, TYP. LIGHT FIXTURE MIN. 4 TIGHT TURNS 1-1/2" BOTH ENDS, TYP. COMPRESSION STRUTS ATTACHED TO MAIN RUNNER W/ 1/4 DIA. MB & THE STRUCTURE @ BRACING POINTS 12 GA. RESTRAINING WIRES SPLAYED 90° FROM EACH OTHER AND 45° FROM CEILING PLANE AT MAIN RUNNERS ACOUSTICAL CEILING TILE TYP. 6" MAX.
