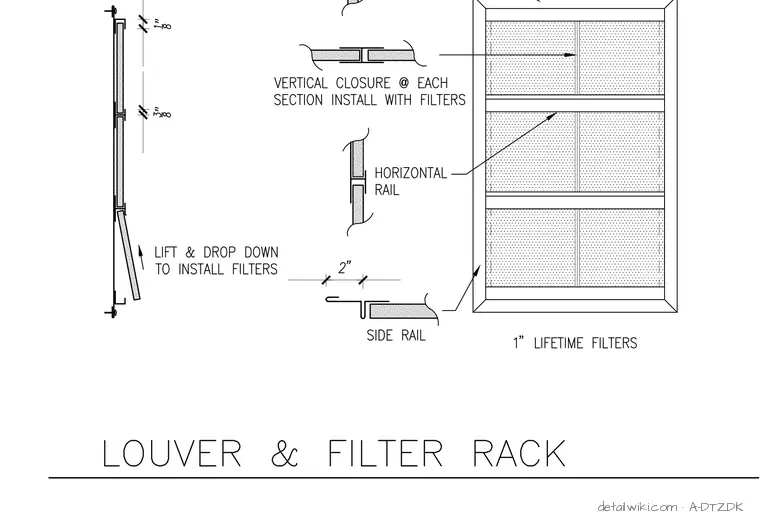

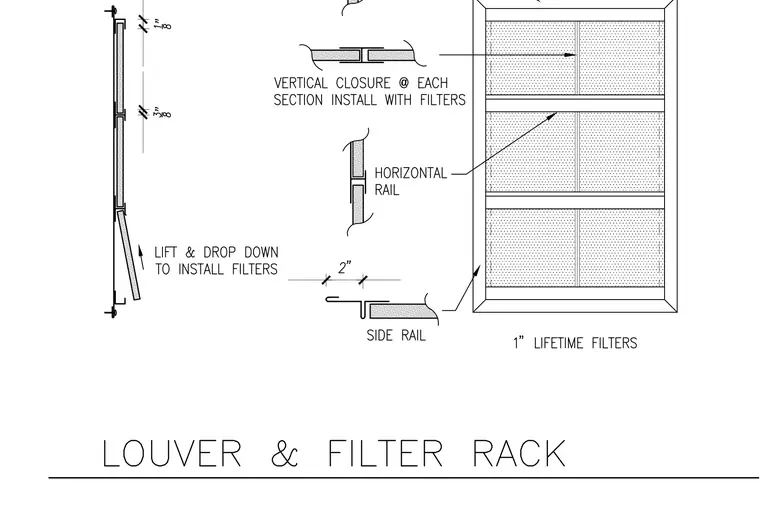

An aluminum louver and filter rack assembly incorporates one-inch lifetime filters installed with a lift-and-drop-down mechanism. Vertical closures are positioned at each section and installed with filters, backed by horizontal rails and side rails. Dimensional callouts indicate spacing such as two inches at the side rail configuration.
