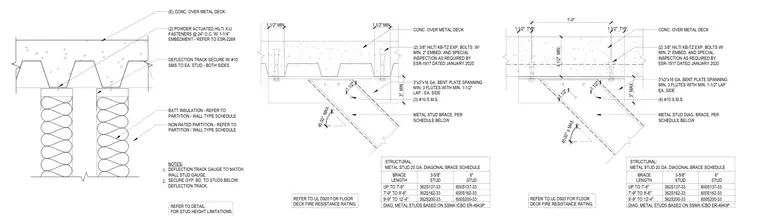

A non-rated cold-formed steel partition head runs parallel to a concrete-filled metal deck. The deflection track is secured to the underside of the concrete deck using two powder-actuated Hilti X-U fasteners spaced at twenty-four inches on center with one and one-quarter inch embedment. The steel studs connect to the deflection track with number ten sheet metal screws on each side, while gypsum board is secured to the studs below the track. A three-inch by three-inch by sixteen gauge bent plate spans a minimum of three flutes of the deck with a one and one-half inch lap on each side. Two three-eighths inch Hilti KB-TZ expansion bolts with a minimum two-inch embedment anchor the bent plate to the concrete deck. A diagonal metal stud brace connects to the bent plate and the wall stud, sized according to the included twenty gauge diagonal brace schedule based on stud size and brace length.
NOTES: DEFLECTION TRACK GAUGE TO MATCH WALL STUD GAUGE. SECURE GYP. BD. TO STUDS BELOW DEFLECTION TRACK. 1. 2. REFER TO DETAIL FOR STUD HEIGHT LIMITATIONS. (E) CONC. OVER METAL DECK (2) POWDER ACTUATED HILTI X-U FASTENERS @ 24" O.C. W/ 1-1/4" EMBEDMENT - REFER TO ESR-2269 DEFLECTION TRACK SECURE W/ #10 SMS TO EA. STUD - BOTH SIDES BATT INSULATION - REFER TO PARTITION / WALL TYPE SCHEDULE NON-RATED PARTITION - REFER TO PARTITION / WALL TYPE SCHEDULE 1'-0" 1 1/2" TYP. 1 1/2" TYP. 1 1/2" 1 1/2" 45.00° ± MAX. CONC. OVER METAL DECK 4 1/2" MIN. 3" MAX. (2) 3/8" HILTI KB-TZ EXP. BOLTS W/ MIN. 2" EMBED. AND SPECIAL INSPECTION AS REQUIRED BY ESR-1917 DATED JANUARY 2020 3"x3"x16 GA. BENT PLATE SPANNING MIN. 3 FLUTES WITH MIN. 1-1/2" LAP EA. SIDE (4) #10 S.M.S. METAL STUD DIAG. BRACE, PER SCHEDULE BELOW STRUCTURAL: METAL STUD 20 GA. DIAGONAL BRACE SCHEDULE BRACE LENGTH 3-5/8" STUD 6" STUD UP TO 7'-8" 7'-9" TO 9'-8" 9'-9" TO 12'-4" DIAG. METAL STUDS BASED ON SSMA ICBO ER-4943P 362S137-33 362S162-33 362S200-33 600S137-33 600S162-33 600S200-33 REFER TO UL D920 FOR FLOOR DECK FIRE RESISTANCE RATING. (2) 3/8" HILTI KB-TZ EXP. BOLTS W/ MIN. 2" EMBED. AND SPECIAL INSPECTION AS REQUIRED BY ESR-1917 DATED JANUARY 2020 CONC. OVER METAL DECK 3"x3"x16 GA. BENT PLATE SPANNING MIN. 3 FLUTES WITH MIN. 1-1/2" LAP - EA. SIDE (3) #10 S.M.S. METAL STUD BRACE, PER SCHEDULE BELOW STRUCTURAL: METAL STUD 20 GA. DIAGONAL BRACE SCHEDULE BRACE LENGTH 3-5/8" STUD 6" STUD UP TO 7'-8" 7'-9" TO 9'-8" 9'-9" TO 12'-4" DIAG. METAL STUDS BASED ON SSMA ICBO ER-4943P 362S137-33 362S162-33 362S200-33 600S137-33 600S162-33 600S200-33 REFER TO UL D920 FOR FLOOR DECK FIRE RESISTANCE RATING. 1 1/2" MIN. 1 1/2" MIN. 1 1/2" 45.00° MAX. 3" MIN.
