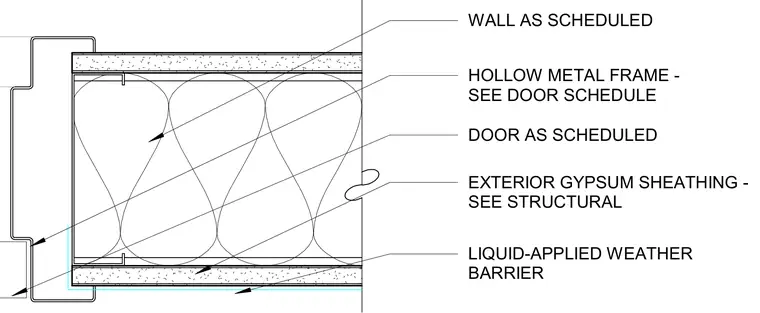

An exterior hollow metal frame is set into a wall assembly as scheduled per the door schedule. The framing is flanked by exterior gypsum sheathing sized per structural requirements and finished with a liquid-applied weather barrier. The door panel is provided as scheduled.
WALL AS SCHEDULED HOLLOW METAL FRAME - SEE DOOR SCHEDULE DOOR AS SCHEDULED LIQUID-APPLIED WEATHER BARRIER EXTERIOR GYPSUM SHEATHING - SEE STRUCTURAL
