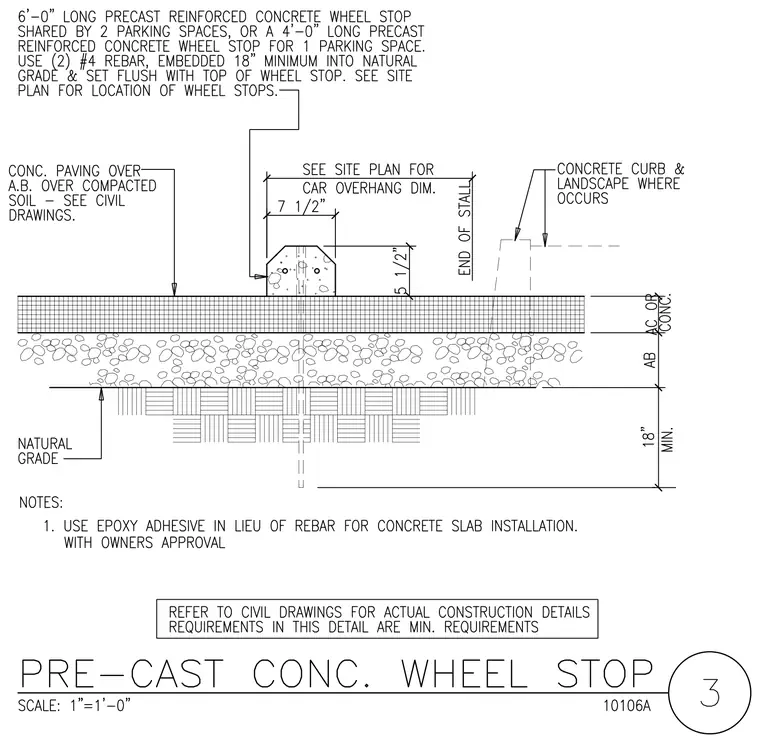

A precast reinforced concrete wheel stop measuring 7-1/2 inches wide by 5-1/2 inches high is anchored to concrete or asphalt paving. The wheel stop is secured with two number 4 rebars embedded 18 inches minimum into the natural grade and set flush with the top of the wheel stop, or installed with epoxy adhesive in lieu of rebar upon owner approval. Paving bears on aggregate base over compacted soil, with concrete curb and landscape positioned at the end of the stall where applicable.
