2 Hr Fire Barrier Wall Assembly

Materials

Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

About this detail

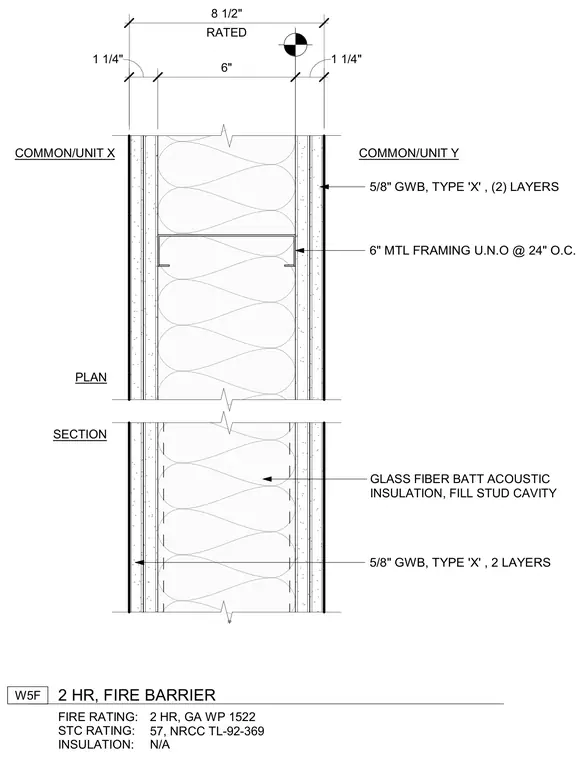

This 2-hour rated fire barrier wall assembly consists of 6-inch metal framing spaced at 24 inches on center. Both sides of the stud cavity are finished with two layers of 5/8-inch Type X gypsum wallboard. The stud cavity is completely filled with glass fiber batt acoustic insulation.
