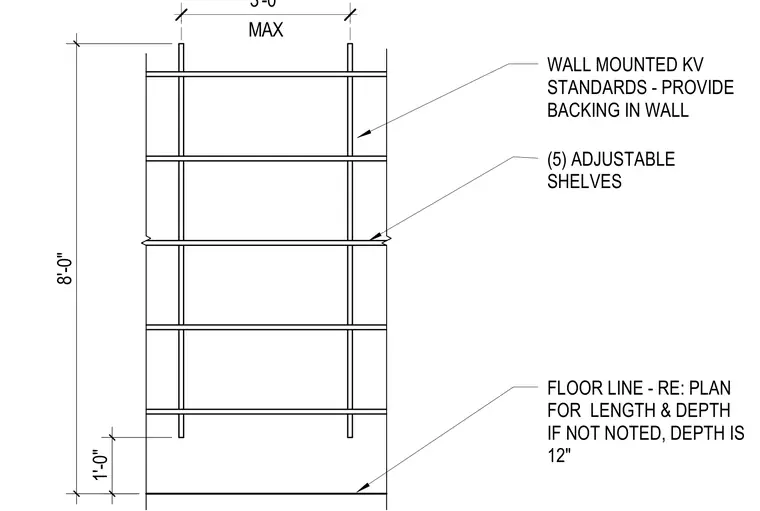

Five adjustable shelves mount to wall-mounted KV standards with a maximum span of three feet. The assembly requires solid backing provided within the wall construction. Shelves install starting one foot above the floor line up to an overall height of eight feet. Refer to floor plans for specific length and depth requirements, noting that default depth is twelve inches.
(5) ADJUSTABLE SHELVES MAX 3'-0" WALL MOUNTED KV STANDARDS - PROVIDE BACKING IN WALL 8'-0" 1'-0" FLOOR LINE - RE: PLAN FOR LENGTH & DEPTH IF NOT NOTED, DEPTH IS 12"
