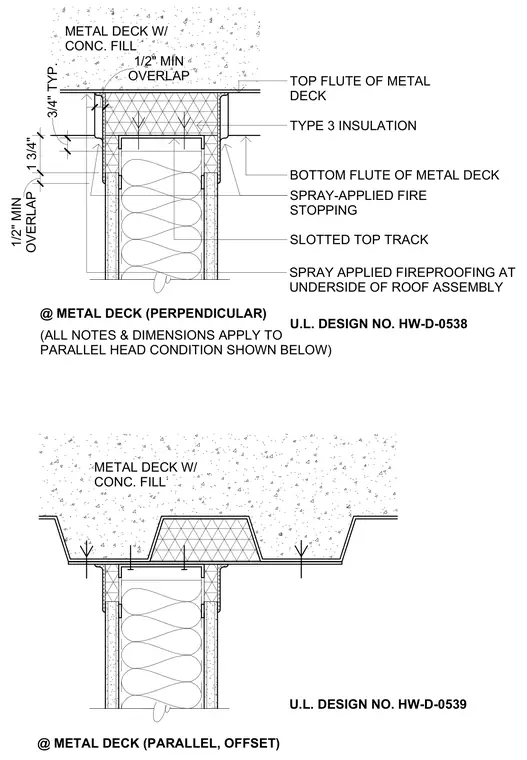

A partition head assembly intersects a concrete-filled metal deck roof with parallel offset orientation under UL Design No. HW-D-0539. A slotted top track accommodates structural movement at the top of the wall, framed with type 3 insulation and spray-applied firestopping in the deck flutes. Spray-applied fireproofing is applied to the underside of the roof assembly. A minimum one-half inch overlap is specified at the joint conditions with three-quarters of an inch typical spacing.
@ METAL DECK (PARALLEL, OFFSET) @ METAL DECK (PERPENDICULAR) (ALL NOTES & DIMENSIONS APPLY TO PARALLEL HEAD CONDITION SHOWN BELOW) U.L. DESIGN NO. HW-D-0539 U.L. DESIGN NO. HW-D-0538 OVERLAP 1/2" MIN 1 3/4" OVERLAP 1/2" MIN TOP FLUTE OF METAL DECK TYPE 3 INSULATION BOTTOM FLUTE OF METAL DECK SPRAY-APPLIED FIRE STOPPING SLOTTED TOP TRACK METAL DECK W/ CONC. FILL METAL DECK W/ CONC. FILL SPRAY APPLIED FIREPROOFING AT UNDERSIDE OF ROOF ASSEMBLY 3/4" TYP.
