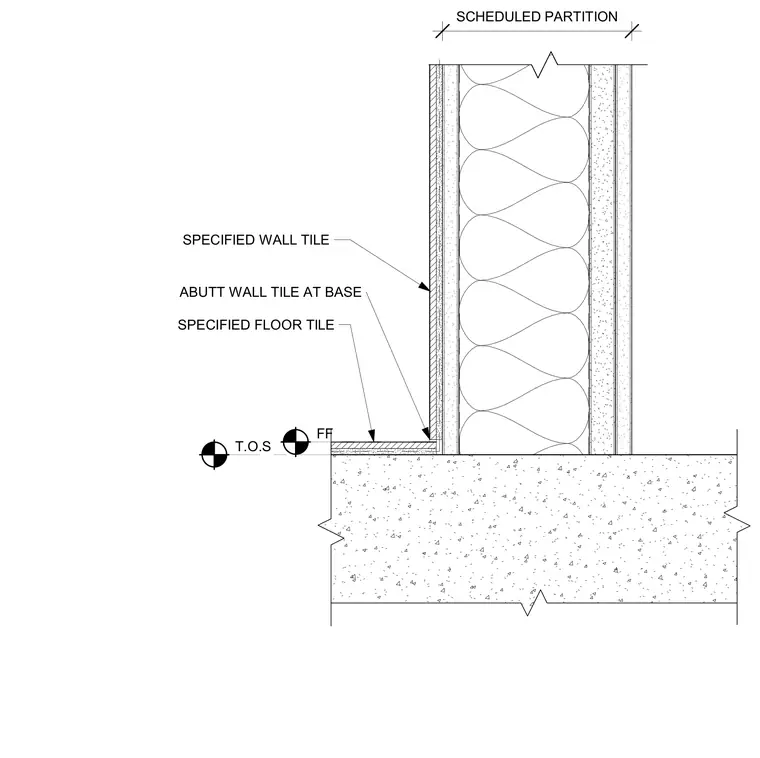

Specified wall tile extends down the face of a scheduled partition to abut the specified floor tile at the base. The transition sits above the finished floor level referenced to the top of slab. Wall tile meets the floor tile directly at the floor-wall junction without a separate base tile trim piece.
ABUTT WALL TILE AT BASE T.O.S SCHEDULED PARTITION SPECIFIED FLOOR TILE SPECIFIED WALL TILE FF
