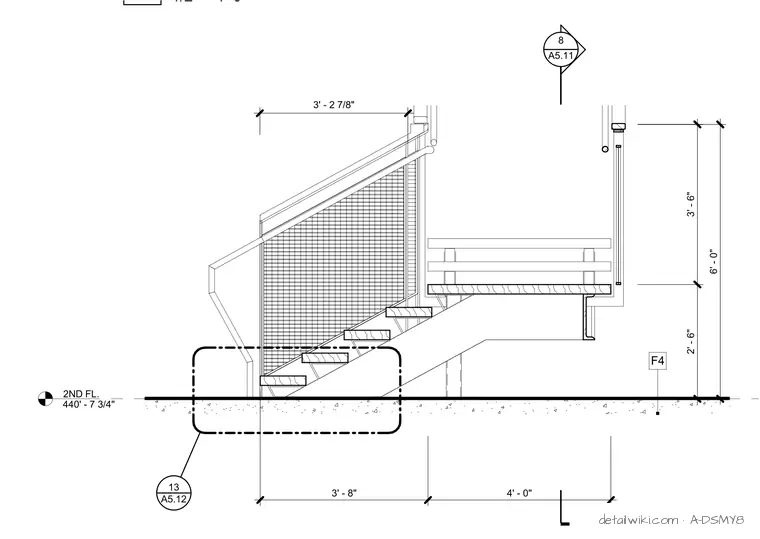

Text on the drawing
2ND FL. 440' - 7 3/4" 8 A5.11 A5.12 13 2' - 6" 3' - 6" 4' - 0" 3' - 8" 6' - 0" F4 3' - 2 7/8" 1/2" = 1'-0" 15
