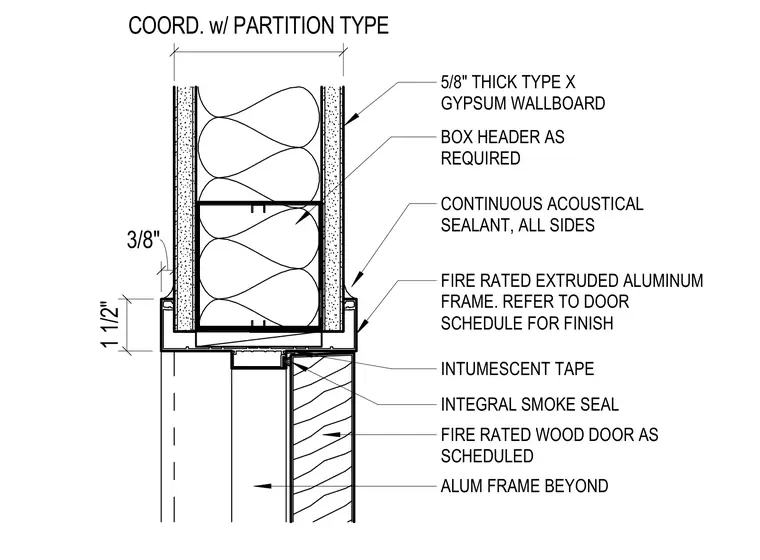

A fire-rated aluminum frame head for a wood door is set within a framed partition. The wall is finished with five-eighths inch thick Type X gypsum wallboard on each side and incorporates a box header as required, coordinated with the partition type. A continuous acoustical sealant is applied on all sides between the aluminum frame and the partition. The head condition features an extruded aluminum frame, an integral smoke seal, and intumescent tape for fire protection. A fire-rated wood door hangs below, with finishes per the door schedule.
5/8" THICK TYPE X GYPSUM WALLBOARD FIRE RATED EXTRUDED ALUMINUM FRAME. REFER TO DOOR SCHEDULE FOR FINISH FIRE RATED WOOD DOOR AS SCHEDULED ALUM FRAME BEYOND CONTINUOUS ACOUSTICAL SEALANT, ALL SIDES BOX HEADER AS REQUIRED COORD. w/ PARTITION TYPE 1 1/2" 3/8" INTUMESCENT TAPE INTEGRAL SMOKE SEAL
