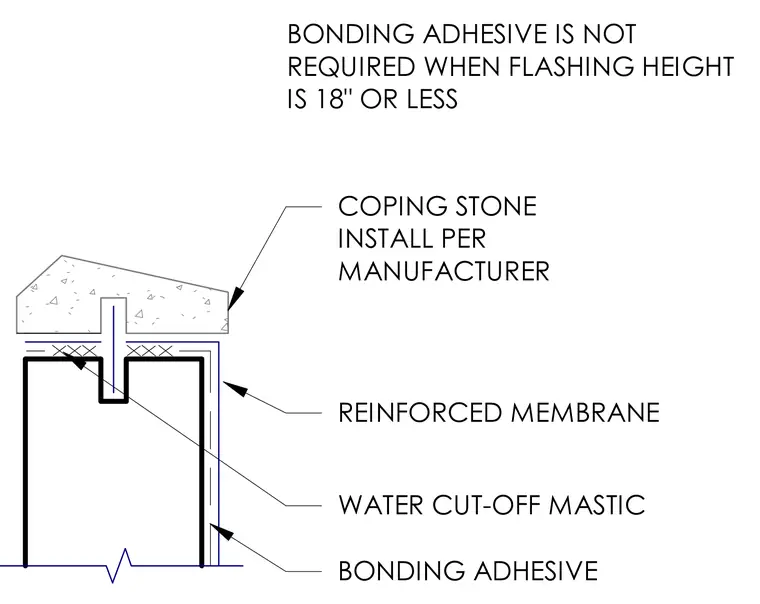

A stone coping sits atop the parapet wall and is installed per the manufacturer recommendations. A reinforced membrane wraps the wall assembly beneath the coping stone, sealed with water cut-off mastic. Bonding adhesive is applied along the wall vertical surfaces, though it is not required when the flashing height is eighteen inches or less.
BONDING ADHESIVE IS NOT REQUIRED WHEN FLASHING HEIGHT IS 18" OR LESS COPING STONE INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER CUT-OFF MASTIC BONDING ADHESIVE
