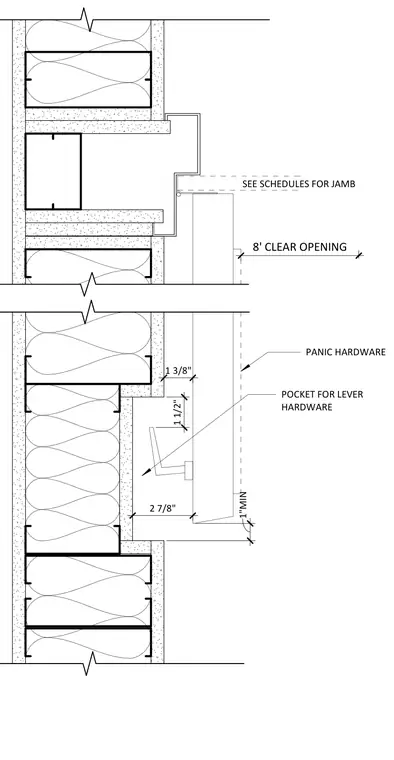

This architectural detail shows a cross corridor door frame recessed pocket for lever hardware and panic equipment set within a framed wall. The assembly features metal studs with insulation and board sheathing, providing a minimum 1 inch pocket clearance for the lever handle. Jamb conditions are coordinated per schedules to achieve an 8 foot clear opening.
2 7/8" 1 1/2" 1 3/8" 1"MIN POCKET FOR LEVER HARDWARE SEE SCHEDULES FOR JAMB 8' CLEAR OPENING PANIC HARDWARE
