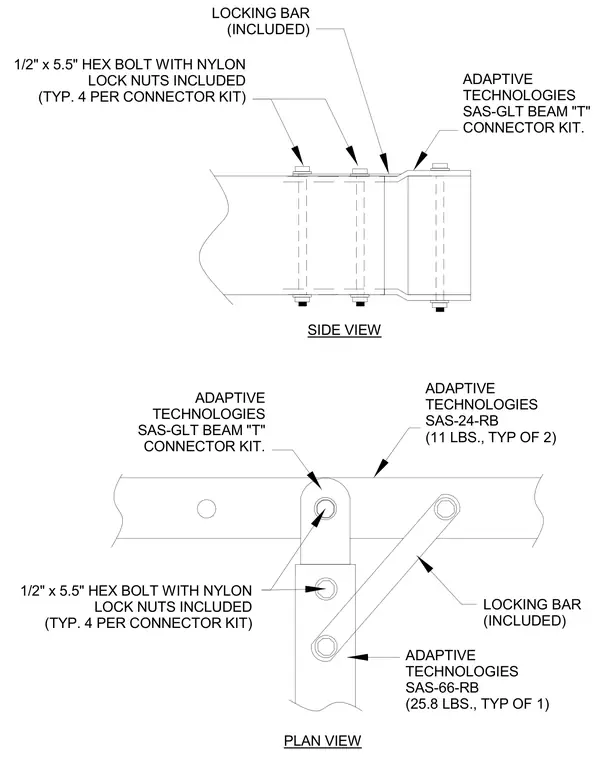

An Adaptive Technologies SAS-GLT beam T-connector kit connects to rigging bars within a speaker rigging T-connection assembly. The assembly utilizes an Adaptive Technologies SAS-66-RB bar weighing 25.8 pounds, typically one per connection, and two Adaptive Technologies SAS-24-RB bars weighing 11 pounds each. Fastening is achieved using half-inch by 5.5-inch hex bolts with nylon lock nuts, typically four per connector kit. An included locking bar provides lateral stability and secures the joint.
PLAN VIEW SIDE VIEW LOCKING BAR (INCLUDED) 1/2" x 5.5" HEX BOLT WITH NYLON LOCK NUTS INCLUDED (TYP. 4 PER CONNECTOR KIT) ADAPTIVE TECHNOLOGIES SAS-GLT BEAM "T" CONNECTOR KIT. LOCKING BAR (INCLUDED) ADAPTIVE TECHNOLOGIES SAS-66-RB (25.8 LBS., TYP OF 1) ADAPTIVE TECHNOLOGIES SAS-24-RB (11 LBS., TYP OF 2) ADAPTIVE TECHNOLOGIES SAS-GLT BEAM "T" CONNECTOR KIT. 1/2" x 5.5" HEX BOLT WITH NYLON LOCK NUTS INCLUDED (TYP. 4 PER CONNECTOR KIT)
