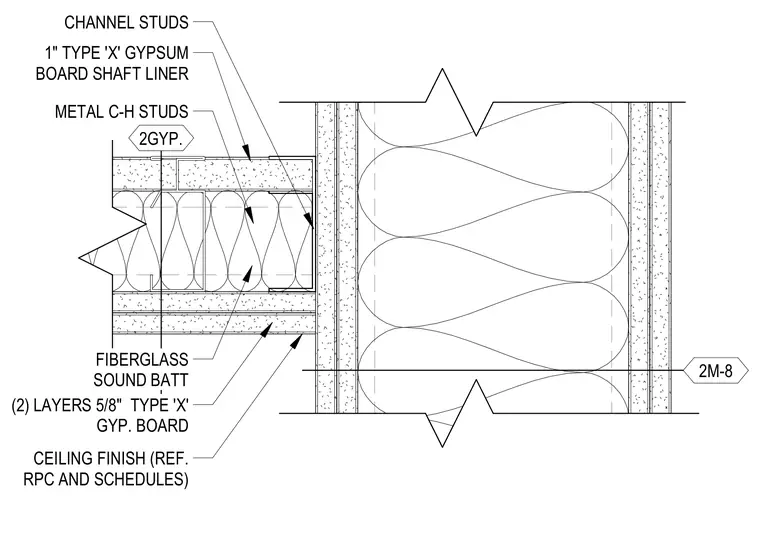

Metal C-H studs frame the bulkhead assembly alongside channel studs and a one-inch Type X gypsum board shaft liner. Fiberglass sound batts fill the interior cavity for acoustic control. Two layers of five-eighths-inch Type X gypsum board finish the exterior surfaces of the bulkhead assembly meeting the partition wall.
FIBERGLASS SOUND BATT 1" TYPE 'X' GYPSUM BOARD SHAFT LINER METAL C-H STUDS (2) LAYERS 5/8" TYPE 'X' GYP. BOARD CEILING FINISH (REF. RPC AND SCHEDULES) CHANNEL STUDS 2M-8 2GYP.
