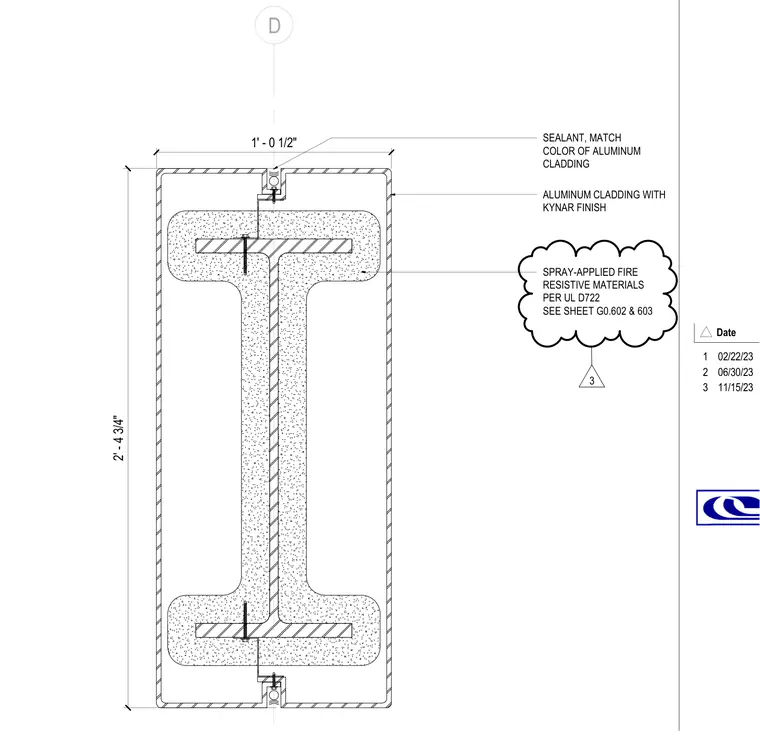

An exposed structural steel beam is wrapped in aluminum cladding with a Kynar finish. The interior cavity surrounding the steel shape is filled with spray-applied fire-resistive materials per UL D722. Meeting joints in the aluminum enclosure are sealed with sealant matching the cladding color.
D SEALANT, MATCH COLOR OF ALUMINUM CLADDING ALUMINUM CLADDING WITH KYNAR FINISH 2' - 4 3/4" 1' - 0 1/2" SPRAY-APPLIED FIRE RESISTIVE MATERIALS PER UL D722 SEE SHEET G0.602 & 603 Date 1 02/22/23 2 06/30/23 3 11/15/23 3
