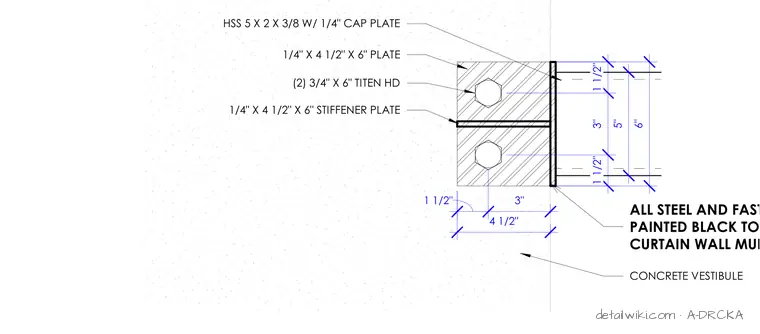

A 5-inch by 2-inch hollow structural section is capped with a 1/4-inch plate and secured to a concrete vestibule wall. The assembly utilizes a 1/4-inch by 4 1/2-inch by 6-inch base plate reinforced by a 1/4-inch by 4 1/2-inch by 6-inch stiffener plate. Two 3/4-inch by 6-inch Titen HD heavy-duty screw anchors fasten the plate to the concrete. All steel components and fasteners are finished with a black paint to match the adjacent curtain wall mullions.
Text on the drawing
3" 1 1/2" HSS 5 X 2 X 3/8 W/ 1/4" CAP PLATE (2) 3/4" X 6" TITEN HD 1/4" X 4 1/2" X 6" PLATE 1/4" X 4 1/2" X 6" STIFFENER PLATE ALL STEEL AND FASTENERS PAINTED BLACK TO MATCH CURTAIN WALL MULLIONS CONCRETE VESTIBULE 5" 4 1/2" 1 1/2" 3" 1 1/2" 6"
